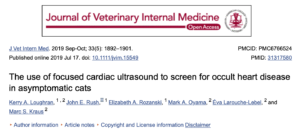

This Loughran et al. is an interesting feline clinical study evaluating echo views as a “2-minute screening test” for feline heart disease by nonspecialist practitioners (NSP) and the focus of this ECC and IM Blog. The study, published in the Sept-Oct 2019 issue of the Journal of Veterinary Internal Medicine (JVIM), is “Open Access” thus you can obtain the text in full:
They refer to this “2-minute screening test” as “an extension of the feline physical exam” in the YouTube Instructional Video LINKED below by Dr. John Rush, DVM, DACVIM (Cardiology), Professor, Tufts University, College of Veterinary Medicine, and second author.
The Loughran et al. study’s “2-minute echo” approach emphasizes similar TFAST® views that are taught in our Global FAST® Courses and include:
1) The Left atrial to Aortic Ratio (LA:Ao) on short-axis from the right side (parasternal/pericardial view)
2) The Left Ventricular Short-axis “Mushroom view” (LVSA) from the right side (parasternal/pericardial view)
Criteria for Capturing Abnormal Cats Using their “2-minute Echo Screening Test”
A) Hypertrophic Cardiomyopathy (HCM) Cats – Most Common Type of Feline Heart Disease
1) The left atrium is considered “enlarged” by the following findings:
- A short-axis (SAx) left atrial measurement to the aortic root measurement with their ratio of > 1.6 being abnormal (LA:Ao > 1.6) using the “Swedish Method” – we refer to as the “Linear Method”
- A short-axis (SAX) left atrial area that can fit > 2.5-3 aortas – we refer to as the “John Rush Area Method”
- NOTE: the “Eyeball Method” is much less reliable in cats because the heart rate is much higher than dogs – you must follow our imaging pearl of “Freeze and Roll the Cine Ball through frames to evaluate. Best practice is to save your images, both still images, and cine clips.
2) The left ventricular wall is considered “thick” by the following findings:
- The left ventricular wall on SAx being > 40% the left ventricular cavity diameter
- The left ventricular papillary muscles on SAx subjectively appearing prominent and asymmetrical
- The left ventricular filling on SAx subjectively being small in systole
- NOTE: the “Eyeball Method” is much less reliable in cats because the heart rate is much higher than dogs – you must follow our imaging pearl of “Freeze and Roll the Cine Ball through frames to evaluate. Best practice is to save your images, both still images, and cine clips.
B) *Dilated Cardiomyopathy (DCM) Cats
1) Poor left ventricular contractility by the following:
- If the left ventricle does not contract more than 50% on SAx during systole
- If the vigor of the left ventricular contractions on SAx appear subjectively less than normal
*Rule of Thumb – Dilated Cardiomyopathy (DCM) is rare in cats
C) #Pleural Effusion (PE) and Pericardial Effusion(PCE)
1) Teaching for the NSP was based on video clips – so in other words “it looks like PE or PCE” which is error prone (and dangerous practice) because the major confounder is confusing a heart chamber for PE or PCE…and potentially catastrophic mistakes include 1) performing centesis on a heart chamber, and 2) clinically mismanaging the cat thinking it falsely has PE or PCE.
…a better approach is learning and following our TFAST® Imaging Rules…published in our textbook, Ettinger, CVT, Clinical Veterinary Advisor, Small Animal Diagnostic Ultrasound, Veterinary Clinics of North America, and many review articles.
2) The FASTVet rules for the accurate TFAST® diagnosis of PE and PCE include the following:
- Always image the heart in its entirety using the bright (hyperechoic) pericardium as a landmark in the far field – our Mantra is “Center the heart, and clearly get it off the bottom of the screen” having plenty of depth
- Understanding the PCE is “rounded” effusion within the pericardial sac vs. PE that is uncontained and unrestrained that triangulates
- PE is wafting of PE at the Diaphragmatico-Hepatic (DH) View, or triangulations off setting to the heart following our heart imaging Mantra, or in small volumes cranial and caudal to the heart looking for the “Curtain Sign” of PE
- PCE is contained within the pericardial sac and thus seen as the rounding of fluid with strategies of avoiding the crescent-shaped right ventricle:
- Image toward the muscular apex of the heart where it is unlikely to mistake a heart chamber (especially the crescent shaped right ventricle or left auricular appendage) for PE or PCE
- “Racetrack Sign” of PCE at the FAST Diaphragmatico-Hepatic (DH) View is nearly 100% Specific and Sensitive for clinically-relevant PCE
- “Bull’s Eye Sign” via the right TFAST® Pericardial Site view
- Image toward the muscular apex of the heart where it is unlikely to mistake a heart chamber (especially the crescent shaped right ventricle or left auricular appendage) for PE or PCE
- The Long-axis 4-chamber View in which all 4 chambers may be identified and thus effusion (PCE and PE) is clearly outside of the 4 heart chambers
- NEVER diagnose PCE solely as a primary view on the right-sided TFAST® Pericardial Site Left Ventricular Short-axis (SAx) Views unless at the “Bull’s Eye” SAx level as it is too easy to mistake the crescent-shaped right ventricle for PE or PCE especially in distressed patients
- Saving cine clips (video clips) is helpful so that they may be reviewed after placing the cat in oxygen. This allows further review without the stress of image acquisition and the patient. The Mantra “Get your images by saving, saving, saving, then place the cat in oxygen and return to review said captured images”
#Pericardial Effusion is important because the most common cause in cats (>75%) is congestive heart failure, a treatable disease (Hall et al. JVIM 2007; Ward et al. JVIM 2018)

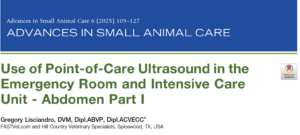

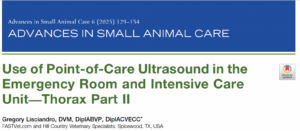

Dr. Greg’s Recent Reviews click here for AFAST® and here for TFAST® and Vet BLUE®. These are great reviews from 2026.

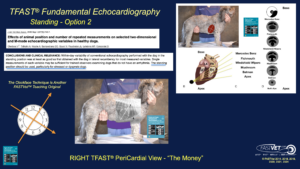

Our FASTVet Original Clockface Technique is being used by our colleagues now, it is almost foolproof for getting SAx and LAx views and in standing patients you can see your scanning planes. Works for dogs, cats, ferrets, etc. We began teaching this manner over a decade ago:
Some FASTVet notes from the JVIM Study article:
Abbreviations:
Ao: aorta
FCU: Focused Cardiac Ultrasound
JVIM: Journal of Veterinary Internal Medicine
LA: left atrium
LAx: long-axis
LVSA: left ventricular short-axis view
NSP: Non-Specialist Practitioner
PCE: pericardial effusion
PE: pleural effusion
POC: point-of-care
POCUS: point-of-care ultrasound
SAx: short-axis
TFAST: thoracic FAST
Numbers of Cats Enrolled:
1) 343 cats, none sedated, 28 removed because fractious, 26 cats because of inadequate image acquisition (84% success rate)
2) Each NSP contributed a median number of 11 cases
3) Median cat age 9-years
4) Median cat weight 5.2 kilograms
5) Cats – 114 females, 175 males
6) Heart rate and respiratory rate were not helpful
7) Use of Physical Exam (murmur, gallop), ECG was also not helpful to screen cats
8) Most effective was the addition of Focused Cardiac Ultrasound (FCU)
9) Interestingly, the addition of POC-BNP did not add any additional diagnostic value over the FCU in this study
Section 1

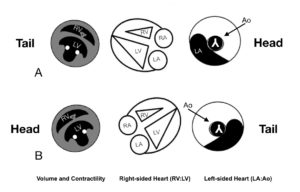

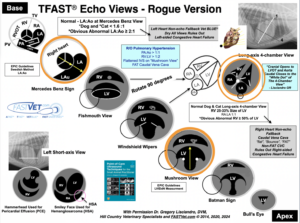

1) The cardiologist’s images are mirrored from the manner we teach. The cardiologist reverses the screen orientation with the head to the right and tail to the left. We keep ALL imaging the same no matter the region on the patient with the head (cranially) to left of the screen and the tail to right (caudally). The head to the left orientation is standard for AFAST®, TFAST® and Vet BLUE® and for lateral radiography. When viewing a cardiologist’s echo views you will have make mental adjustments. Here are the TFAST® echo views in charts with an overlying Clock Face – see Section 3 – in the Classic Cardiologist Orientation and the Rogue Global FAST® Orientation…another FASTVet Teaching Original – our Clockface Technique.
Again, the cardiologist reverses the screen orientation. The positioning and centering of the image is thus backwards from saying placing the kidney or urinary bladder in the center of the screen. In other words we do not reverse the orientation but keep the same orientation for all Global FAST® imaging no matter what is being imaged. If you have learned the our TFAST® echo methodology and you want the cardiologist orientation, you have 2 choices – 1) you can rotate the probe marker 180 degrees while still using the 4 o’clock short-axis (SAX) line or 2) use the “reverse button” feature. See Section 3
Of note: In human point-of-care ultrasound (POCUS) training, many institutions do the same as we teach and do NOT reverse the orientation marker during echo views seeing the importance of keeping all ultrasound imaging consistent.
Cardiologists who are now understanding the importance of the Global FAST® Approach are facing similar orientation challenges because of the historical reversal of the marker for echo views. Some of the veterinary cardiologists we know are now scanning lung (Vet BLUE®) and abdomen (AFAST®) with the same consistent orientation as their echo views because of the spatial problems created when “reversing” from cardiac to lung and abdomen.
Section 2
2) Assessment for increased left atrial (LA) size by the “Traditional Linear Method” and the “John Rush Area Method.” We like his approach as well because it’s a good way to double check yourself by comparing both the “Traditional Linear Method” and the “John Rush Area Method” to one another.
The comparison of the 2 methods for estimating left atrial enlargement

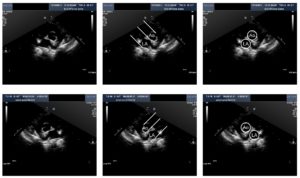

in a normal LA:Ao cat. Copyright 2019 Greg Lisciandro, DVM, FASTVet.com
The comparison of the 2 methods for estimating left atrial enlargement

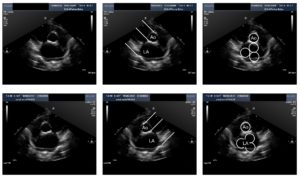

in an abnormal LA:Ao cat. Copyright 2019 Greg Lisciandro, DVM, FASTVet.com
We like both the “John Rush Area Method’ and the “Traditional Linear Method.” By using both methods, it’s a good way to double check yourself.
Section 3
3) The probe marker is directed to ~ 4 o’clock and then fanned while staying on the 4 o’clock short-axis line through the various short-axis (SAx) views – see Section 1. The common mistake is rotating your hand off this SAx line while fanning – most often by erroneously rotating to 3 o’clock. The key here is to constantly check your probe to make sure you are on the 4 o’clock SAx line and if not, self correct.
Note the manner in which a cardiologist does the view, the probe marker would be on a 10 o’clock line (180 degree reversal). Some machines have an automatic “reverse” button that will change the screen for you without you having to rotate your probe. Look for this feature on your machine:
The “Reverse” button on the keyboard of a GE Logiq e
Find these buttons on your Keyboard and place those colored adhesive or sticker dots next to these buttons. The way to easily tell how they change the image is to place the probe on YOUR soft tissue neck area with beating vessels (carotids) and play with these knobs! And do the same on your patients spleen and urinary bladder.

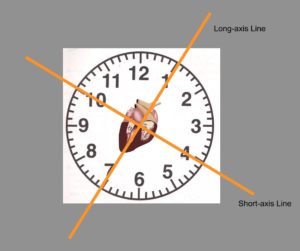

We have found the FASTVet “Clock Face Approach” to be very effective for teaching short- and long-axis echo views. See Section 1
Section 4
4) The Focused Cardiac Ultrasound (FCU) study describes pleural effusion (PE) and pericardial effusion (PCE) yet gives no information on these results, the presence and absence of either. A JVIM reviewer should have caught the oversight.
FASTVet teaches from data shown in feline clinical studies, that the presence of PE and PCE, in addition to echo views, is clinically impactful for the patient’s working diagnosis. The presence of PCE places congestive heart failure, a treatable disease, at the top of the working diagnosis (Hall et al. JVIM 2007; Ward et al. JVIM 2018) and argues against the “flash” approach.
Section 5

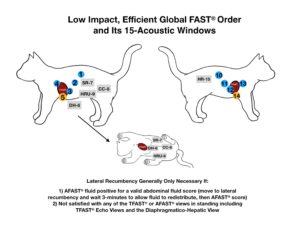

5) No discussion is mentioned regarding what we refer to as the Global FAST® Fallback Views, another FASTVet original concept . These Global FAST® Fallback Views are important because they are often easier and less risky for the feline patient (and canine and other species) over echo views. The premise is that absent B-lines all Vet BLUE® views effectively rules out left-sided congestive heart failure (L-CHF) (Lisciandro et al. JVECC 2016; Ward et al. JAVMA 2017); and a “Bounce” (height changes of 35-50% during respiratory and cardiac cycles) to the caudal vena cava without hepatic venous distension as the caudal vena cava crosses the diaphragm at the AFAST®-TFAST® Diaphragmatic-Hepatic (DH) View rules out right-sided congestive heart failure (R-CHF).
Thus, when the feline patient has equivocal echo views the Global FAST® Non-echo Fallback Views provide additional clinically relevant information; and when the echo views are unattainable, the Global FAST® Fallback Views can help dictate how urgently a complete echo study is needed.

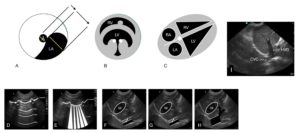

The use of the Global FAST® Non-Echo Fallback Views in patients
with left atrial and right ventricular enlargement.
Modified from Focused Ultrasound Techniques for the Small Animal Practitioner, Wiley Copyright 2014 and Greg Lisciandro, DVM, FASTVet.com Copyright 2019
Section 6
6) The “S probe” stands for “Sector probe” which is the same as a “Phased-array” probe and are advantageous for cardiac imaging because their small focal point optimizes imaging of the heart by eliminating rib shadows. Probe and transducer are synonymous. In the YouTube Instructional Video the something like S12-4 and the S8-3 and the S5-1 probes are mentioned. The numbers after the letter indicate the frequency range so “S12-4” has a range of 12MHz to 4MHz and the “S8-3” has a range of 8MHz to 3MHz and so forth. The same letter and number system holds true for convex and linear probes.

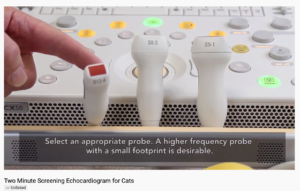

Screen Shot from the You Tube Video by Dr. John Rush
Most of you will have microconvex probes with a frequency range of 5-10 MHz which will be fine for imaging cat hearts with the disadvantage of rib shadows. A linear probe distorts the heart too much, generally does not provide adequate depth as well, plus other inherent factors.
Section 7
7) Lastly a repeat evaluation 2-4 weeks later and then every few months would have been a good recommendation by this study in questionable cats THAT is not mentioned. Repeating the exam is always a good rule of thumb in my book : ) and eliminates the pressure of an equivocal study along with integrating the Global FAST® Approach and its Fallback Views for evidence of congestive heart failure.
Always do a Global FAST®!
